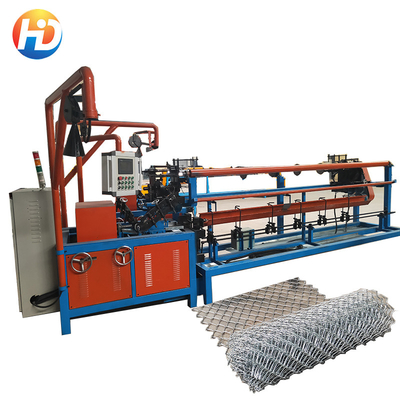

Rhomboidal wire mesh machine
· Wire fencing capacity (speed) :140m2 / hour – ( as result of tests 70mm mesh size)
· Wire fencing option up to 6 meters height.(the minimum could be any size)
· Rolling models is 4 types. (Normal,Combi, Partially Compact, Compact) So transfer costs decrease 70%.
· Designed for continuous working system as 24 hours.
· Dual-wire input,Dual mold technology
· Can Working with galvanized Wire.PVC coated wire.Stainless steel wire,Black Annealed wire,
· Automatically fencing, cutting, and roll wrapping process.
· All the information about metering, wire fencing and speed can be set can set via touch screen.
· Informs the wire fencing errors with light and sound.
· Allows document information about the daily work and metering report.
· High Energy Saving through the patented operating system and software..
· Intervening immediately via internet connection on event of a technical failure.Video or phone all ok
· Just one technical person is enough to wire fencing process.
· Our machines are warranty for 1 year
|
Rhomboidal wire mesh machine |
|||
|
Machine |
Dimensions |
mm |
6200*2100*2000 (3m wire mesh machine) |
|
|
Power |
Kw |
10 (5.5Kw servo motor) |
|
|
Weight |
Kgs |
1750 |
|
Wire mesh |
Mesh Width |
m |
0.5-3 |
|
|
Wire Diameter |
mm |
1.6-4.5 (PVC Wire : 1.8mm – 5.8 mm) |
|
|
Hole size |
mm |
25-100(1"-4") |
|
Others |
wire materials |
Galvanized Wire,PVC Coated Wire,Stainless Steel Wire, Vinyl coated wire,aluminum cald steel wire, etc. |
|
|
|
capcity |
m2/hour |
80-150 |
|
|
Rated Voltage |
V |
220 380 420 440 etc |
Good performance of Automatic Chain link fence machine:
1: production efficiency is about twice of same species
2: fault is the lowest in the same species
3: machine is easy and simple to handle.the worker has the common mechanical konwledge can master it in one hour
4:the loss of the raw materials of the same species is 1%-5%,while the innovative Chain link fence machine is nearly zero.
5:the Chain link fence machine can Save 20% of your electricity
6:it is suitable to all kinds of mild steel wires
7:the mesh size has a wide of wide adjustable range
8:the preferential price and first-class quality is the most ideally choice of the customers
1) PLC controlled Fully automatic machine
2) servo-motor control Speed, and good performance
3) Double wire feeding(inlet)
4) Chain link fence width automatic change
Fast speed double wire fully automatic chain link fence machine for export
