Fiberglass wire mesh production line consists of warping machine,weaving machine and coating machine.
specification:
Model | Speed | Length of beam | Power | Weight | Dimension |
ZJ-400 | 60-90RPM | 1370mm | 3kw | 750kg | 1700x2500x1100mm |
ZJ-800 | 60—90RPM | 2920mm | 4kw | 1000kg | 1900x4500x1100mm |
warping machine
The warping machine include the yarn shelf and main machine,which sorts the yarn to the beam for the weaving mesh.The equipment is controlled by two stages of transmission and tension. The speed is closed and the speed is controlled by constant speed. The two rolls are used to press the shaft surface synchronously, so that the surface of the disc is smoother, tighter, the tension of the single yarn is more uniform, and none yarn broken and loosened during weaving. Infrared ray control,when yarn is broken,the machine will stop automatically.
specification:
Model | Speed | Capacity | Width of products | Mesh size | Power | Dimension |
ZWJ-1000 | 150-180rpm | 30-80 m2/h | 1000mm | 3*3—10*10 | 0.8kw | 1600x2500x1500mm |
ZWJ-1300 | 150-180rpm | 30-75 m2/h | 1300mm | 3*3—10*10 | 0.8kw | 1600x2800x1500mm |
ZWJ-2550 | 100-130rpm | 60-140 m2/h | 200mm | 3*3—10*10 | 1.5kw | 1800x4200x1600m |

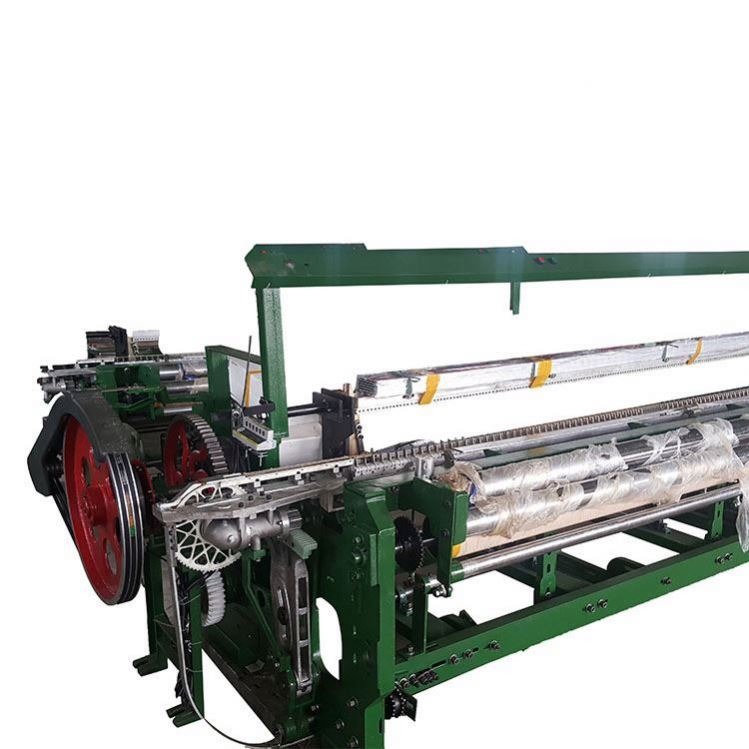

Fiberglass mesh weaving machine is a process of glass fiber materials, woven mesh, fiber glass safety net, wall network, backing with glass fiber mesh equipment. this machine can produce 1m, 1.2 m, 1.5 m, 2.0 m, 2.3 m, 2.4 m kinds of width specifications; mesh density is adjustable between 4 and 12 .
specification:
Model | Mode of heating | Capacity(m2/h) | Preheating time(min) | Width of mesh | Power (kw) | Dimension(mm) |
TJL-D1000 | Electric | 600-900 | 15 | 1000mm | 48 | 6000x2000x3800 |
TJL-S1000 | Electric | 1600—2500 | 20 | 1000mm | 95 | 12000x2000x11000 |
TJL-SQ1000 | Gas | 1600—2500 | 30 | 1000mm | 8 | 12000x2000x11000 |
The coating machine produced by our company has two kind:oil heating and electric heating, which can be customized according to customers' needs.Machine include:coating part,drying part and rolling up parts.
This machine is suitable for the processing grinding wheel mesh and the fiberglass mesh with a width of 2m or less, so that the process of gluing, drying, solidifying and winding of the fiberglass mesh is formed once, and the fiberglass mesh after molding is formed. The glue spread evenly, amount of spread suitable, no displacement, and rewinding is very smooth..
