Home /Products/Air Solenoid Valve/General stainless steel high pressure high temperature ball valve with trigger ball valve for high temperature

General stainless steel high pressure high temperature ball valve with trigger ball valve for high temperature

1 Set
MOQ
$128.00(1 - 49 Sets) $118.00(50 - 99 Sets) $108.00(>=100 Sets)
Price
General stainless steel high pressure high temperature ball valve with trigger ball valve for high temperature
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 YEAR
Type: BALL VALVES
Customized Support: OEM
Model Number: DN15-DN200
Application: General
Temperature Of Media: High Temperature
Power: Electric
Media: Oil
Port Size: DN15-DN200
Structure: BALL
Product Name: Ball Valve
Body Material: Stainless Steel
Working Pressure: 1000WOG 2000WOG
Seal Material: PTFE, PPL, PEEK,Hard Seal
Working Medium: Steam,acid,water,oil,gas,etc.
Connection: Flanged,threaded,welded,clamped
Size: DN15-DN300
Medium Tem.: 20℃-300℃
Drive: Electric Or Pneumatic
Basic Infomation
Model Number: DN15-DN200
Payment & Shipping Terms
Packaging Details: wooden case
Supply Ability: 5000 Set/Sets per Year
Product Description
PRODUCT CONFIGURATION
High temperature ball valve
High temperature ball valve
High temperature ball valve
Product Specification

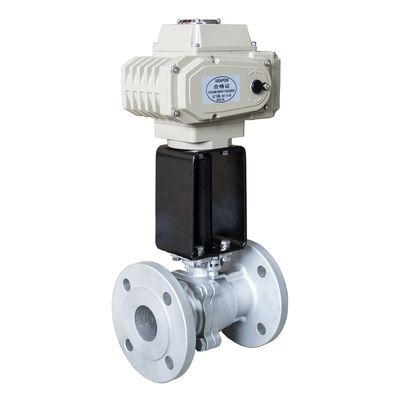

Stainless Steel  2Ways High Temperature Flanged Ball Valve with Electric Actuator
Stainless Steel ball valve with an electric actuator. They are typically used for on-off control or regulate the flow of water or liquid media. Through rotate 90 degrees (quarter-turn) to change the flow diretion. While they typically operate more slowly than valves with a pneumatic actuator, it is often the case that electricity is available and compressed air is not.
High Temperature Valve is used in High temperature condition which the media is more than 100℃ degree to 300℃ degree. If the Temperature is more than 300℃ degree, the metal seat valve is suggested to be used.
Electric Actuator
(Brand: Veapon)
Power
DC12V, DC24V, DC220V, AC24V, AC110V, AC220V, AC380V
Style
ON/OFF style, intelligent style (adjustable style)
Run time
5S to 100S  (According to different size)
Input signal
4-20mA, 1-5V, 0-10VDC, or customize (for intelligent style)
protection grade
IP67
Stainless Steel Ball Valve
Valve Body Material
WCB, SS304, SS316, SS316L, duplex steel
Valve Seat Material
RPTFE, PPL, HARD ALLOY
End type
Threaded, Flanged, Socket-welded, Butt-welded, Clamp
Standard
ANSI, JIS, DIN, CNS
Size
1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4", 5“, 6", 8"
DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200
Pressure
PN16, PN25, PN40, PN63 （1000WOG, 2000WOG)
Certification
ISO9001:2015
The bracket between actuator and valve is separated high temperature media to prevent damage to the actuator.
PPL high temperature valve seat can be used in more than 200℃ degree, not normal PTFE seat.
IP67 Aluminium alloy casting shell actuator
Electric Actuator with Manual wrench
Visual Window on Actuator
ISO5211 Mounting Seat
Click herer to Enlarge
Stainless steel Electric Ball Valve Size Table

Pnuematic High Temperature Threaded Ball Valve

Stainless steel ball valve with a pneumatic actuator. They are are typically used for on-off control of water and liquid media compatible with the materials of construction. Through rotate 90 degrees (quarter-turn) to change the flow diretion. Pneumatic valves are designed for quick opening and closing, it is often the case that compressed air is available.
High Temperature Valve is used in High temperature condition which the media is more than 100℃ degree to 300℃ degree.

Electric High Temperature Threaded Ball Valve

Stainless steel ball valve with an electric actuator. They are are typically used for on-off control of water and liquid media compatible with the materials of construction. Through rotate 90 degrees (quarter-turn) to change the flow diretion. While they typically operate more slowly than valves with a pneumatic actuator, it is often the case that electricity is available and compressed air is not.
High Temperature Valve is used in High temperature condition which the media is more than 100℃ degree to 300℃ degree.
SALES AND SERVICE NETWORK
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our Packing: Carton box for small and light products. / Wooden box for big and heavy products
Company Profile
SLV-Jiangsu Shoulong Valve Co., Ltd. is a comprehensive enterprise engaged in research & development, produciton, sales and import & export of automatic control valves.
Founded in 1988, factory area in Nanjing and Wuxi: 30 acres.
Certifications
Our company has a complete set of prodction and testing equipment, perfect organization and quality system and a number of high-quality professional technicians and also has passed ISO9001-2000, TRD100, CE, API6D, API607, DNV, CNS and other certification successively.
Exhibition
FAQ
Q: Can we visit your factory before placing orders?
A: Yes, sure. Welcome to visit our factory at any time.
Q: How long is your delivery time?
A: 5 days in stock. 15 days if the goods are not in stock.
Q: Do you provide samples? Is it free?
A: Yes, we could offer the sample with favorable price. The amount will be return after bulk order.
Q: What are your terms of payment?
A: Order<=1000USD, 100% in advance. Order>=1000USD, 30% T/T in advance,70% balance before shipment.
Q: Do you provide related accessories?
A: Yes, we can provide solenoid valve, locator, air filter regulator, limit switch and so on.
Q: How long is the warranty period for your product?
A: 18months after shipment. After the warranty period, we could also provide after-sales service.
