| Overall Dimension | |
| YWD-ZM-25 |
| Model | YWD-ZM-25 | Diaphragm |
| Diaphragm diameter (large diaphragm) | Φ96mm | |
| Diaphragm diameter (small diaphragm) |
||
| Flow coefficient / Kv/Cv | 26.16/30.53 | |
| Spray area (m²) | 8˜10 | |
| Inlet and outlet size | Ø34 Ø34 | |
| Weight(kg) | 1.3 | |
| Voltage | 110V/220V/24V | |
| Number of diaphragms | 2 |

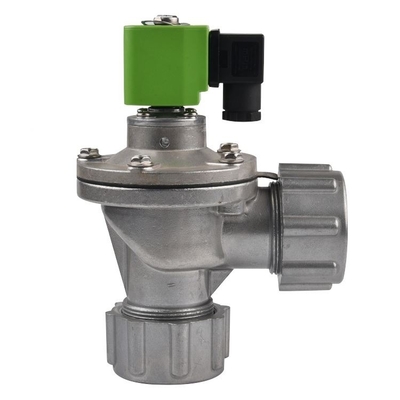

YWD Serie ZM Pulse Valve,20-62S
Product Prarameters
| Model | YWD-ZM-20 | YWD-ZM-25 | YWD-ZM-40S |
| Work pressure | 0.3~0.8Mpa | ||
| Envionnment temperature | -15~55°C | ||
| Relative humidity | <85% | ||
| Use medium | Dry clean compressed air | ||
| Electric pressure | AC110V/A220V/DC24V | ||
| Diaphragm diameter | Injection of million or more | ||
| Nominal diameter | 20mm | 25mm | 40mm |
| Connection threed | G3/4 | G1 | G1-1/2 |
Product Breakdown
Q1. Is the sample order acceptable?
A: Yes, of course.
Q2. What is your MOQ?
A: 1 PCS.
Q3. What is the delivery time?
A: It is about 3-7 days after we receive the payment.
Q4. How to make the payment?
A: We accept T/T, Paypal, Ali Trade Assurance.
Q5. Do you have products in stock?
A: Yes, some stock can be shipped out within 3 days.
Q6. Do you test all your goods before delivery?
A: Yes, all products are fully inspected before delivery.
Q7. What is the warranty?
A: Our warranty is one year. After you receive the goods, if you find defect products, just take pics or videos to send us. We will re-make it for re-fund them to customers once we confirm it is our responsibilities.
