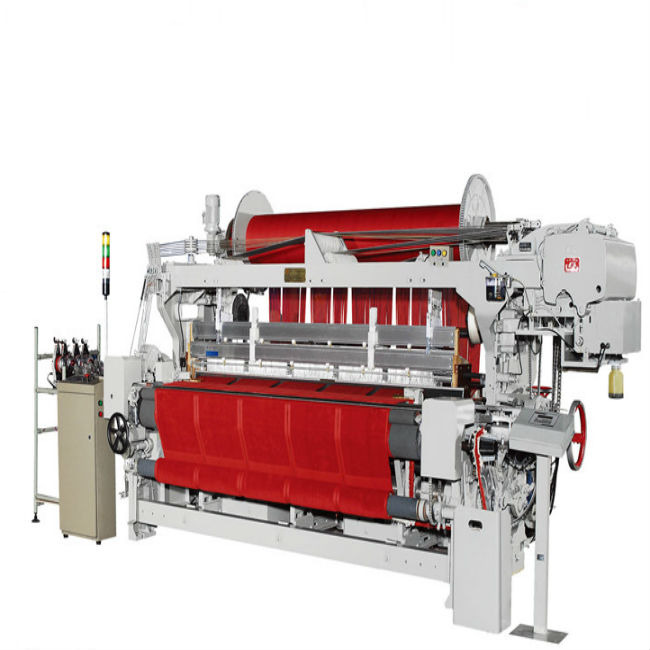

terry towel loom:
FEATURE:
1.adopts the cam with eccentric shaft structure for making terry motion and replaces the old type of knocking bill motion structure, it assure the machine having high reliability of making-terry and regulating conveniency.
2.adopts short crank arm beating-up motion,increasing greatly the beating-up force during weaving thar assures the enough strenth to weave the heavy towel.
3.thicker weft beating shaft assures enough beating rigidity,it can weaving the wide fabric more than 2800mm.
4.adopts optimized six linkages weft insertion structure,make the weft insertion curve more soft
5.the two electronmagnents which controlled the terry raising,controlled by technical program which set by electric control system,it can weaving high and low terry.
6.the reed seat and other main parts made up of aluminum alloy,make the machine running faster more stable,more than 200rpm speed make it the perfect model to replace the low speed towel rapier loom.
Main Data:
| Model | YJ737 terry towel loom |
| Reed width(cm) | 200(78''), 230(90''), 260(102''), 280(110'') |
| Rotation speed (R.P.M) | 250RPM(78'') |
| Weft selection | 6,8 Colors |
| Yarn count | Cotton: 7Ne-60Ne.Wool:120Nm-100Nm Chemical fabric:100D-650D |
| Dia of warp beam(mm) | terry dia.600,ground dia.600 |
| Dia.of rolling-up(mm) | dia.400 |
| Let-off type | up:positive electric let-off down:intermittent mechanical let-off |
| Terry rasing type | Producing terry by movable read |
| Height of terry(mm) | Step less adjustment from 2 to 12times |
| Shedding mechmism | Upper-placed mechanical dobby spring reversing(24 pages of shaft) |
| Number of heddle frame | 16,22pages |
| Weft stop | piezoelectric control |
| Warp stop | 3rows electric |
| warp stopElectric control | p.l.c |
| Motor power(KW) | 1.8KW-2.2KW |
| Weiht(kg) | 1900KG-2300KG |
| Overall Size | 4706X1936X2220 |
SOME PARTS:
WOODEN PALLET:
