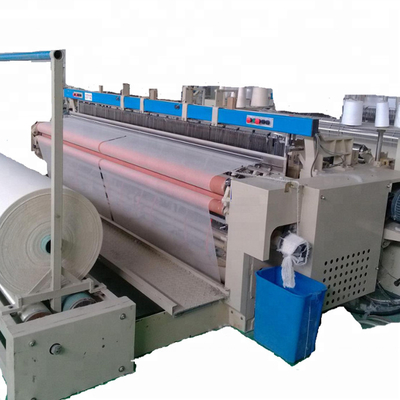

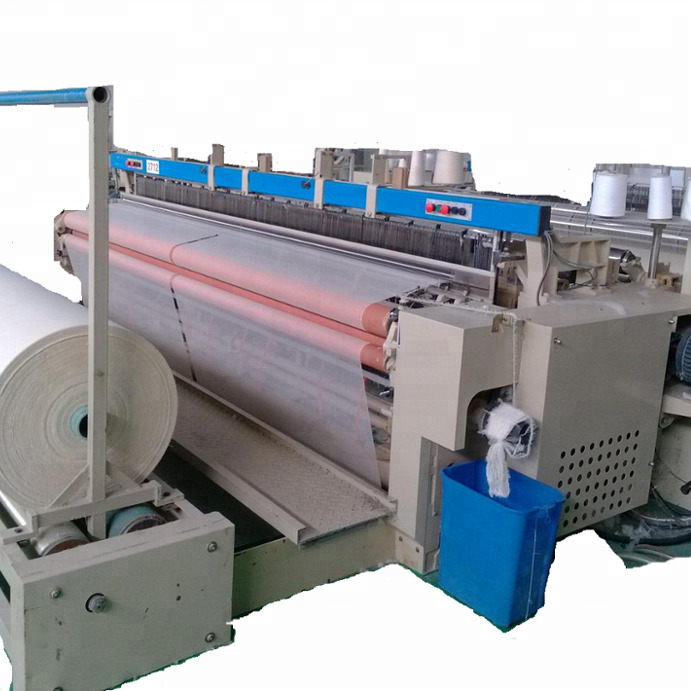

Hz870 air jet loom is our specially designed new styp water jet loom.with a larger workable range of various yarns,two pumps water jet feeding systerm and electronic opration systerm,it can weave two kind of distinctly different yarns at the same time.The RJW-851 based sturdy strcture is also ecellent in vibration reduction during high speed operation.Reed with:190 210 230 250 280 340 360
weft density:5-60pick/cm
|
Item |
|
Standard specifications |
option |
|
Reed space |
Nominal(cm) |
150,170,190,210,230,250 |
|
|
Neck in(mm) |
600mm |
|
|
|
Weaving scope |
Staple |
Ne80-Ne5 |
|
|
Filament |
56d-1000d |
|
|
|
Weft selection |
|
Double /Four Nozzle |
|
|
Power |
|
Super start motor, motor drive directly |
|
|
The motor rating(KW) |
1.8,2.2,2.8,3.0,3.7 |
|
|
|
Weft insertion |
|
Main nozzle, deputy nozzle together, use special reed |
tensile |
|
|
Auxiliary main nozzle |
|
|
|
|
Deputy nozzle relay control |
|
|
|
Shedding |
|
Crank shedding |
|
|
|
Upper cam shedding |
|
|
|
|
Upper dobby shedding |
|
|
|
Let off |
|
Electronic |
|
|
Variable dis dia(mm) |
800 |
|
|
|
Take up |
|
Electronic |
|
|
|
The largest cloth diameter(mm) |
520 |
|
|
|
Weft density range |
9.8-78.7 pick//cm(25-200pick/inch) |
|
|
|
Weaving length counting |
Displayed on the keyboard display, with the function of scale parking |
|
|
Beating-up |
|
Crank type sley feet more beating -up mechanism |
|
|
|
Four linkage beating-up |
|
|
|
Measuring weft Storage |
|
Electric drum weft |
|
|
Leno |
|
Planetary gear type |
|
|
Cutter |
|
Mechanical scissors |
|
|
Stop device |
Weft stop |
Reflex detector |
|
|
Warp stop |
|
6 columns batching motion |
|
|
Other |
Wring side,yarn end processing broken parking |
|
|
|
Fault display |
Operating screen |
|
|
|
4 color indicator light display |
|
||
|
Automation |
|
The computer control system |
|
|
|
Monitoring and self diagnosis function |
