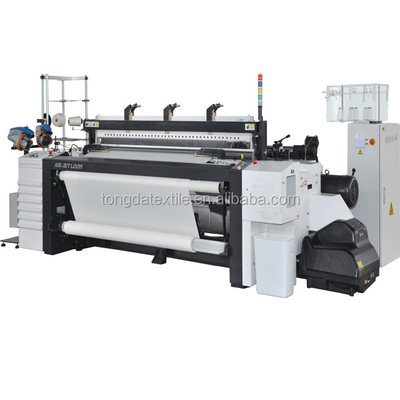

TONGDA high efficiency weaving air jet loom
To go with the trend of market development, and to meet custermers requirements for high-quality andd diversification of air-jet looms, TongDa team elaborately forged and launched higher-speed, more stable and more energy-saving A9100 all-powerful series air-jet looms based on the idea"to break the rules, you must first master them".
The machine is of high electromechanization, more excellent in high-speed, low vibration, energy-saving and less manpower, applicable to weave products from common garment fabrics to various industrial fabrics ranging from denim, woollens, glass fibers, tire fabrics, airbag fabrics etc. As the new generation of weaving equipment, it has great development potentiality.
Specifications
| Rate | up to 1235m/min, depending on fabric types |
| Reed space | 150, 170, 190, 230, 280, 340cm |
| Weft |
Short fiber-7 to 60 tex ( 80 to 10 Ne, need additional device if below 10Ne) Long fiber-5 to 44 tex (40 to 400den) |
| The main transmission | AC starting torque motor direct starting, slow forward and reverse running |
| beating-up | bilateral four connecting rod, the six connecting rod beating up |
| weft stop |
double weft detection |
| Shedding | crank, cam, electronic dobby, jacquard |
| take up | electronical |
| Let -off | electronic let-of |
| weft supply | single colr, two color, four- color mixed free weft |
| Stops | 6 lines of electronic stopping device |
| Sevage | leno (rough and plain) |
| Electronic control | using programmable computer controller as the core |
| Lubrication | the big gear, let-off, take- up gear box with the oil bath type lubrication, the other by forced centralized oil supply mode |
Main features
1) Thicken body frame, stay stable when high speed running.
2) Standard 6 air bags in body frame, which is easier to upgrade afterward.
3) Double braking device, efficiently prevent stop marks in fabrics.
4) Adjustable external let-off mechanism.
5) Automatic central oil supply system, efficiently increase the service life of spare parts.
Details
Advantages
Name: integrated side frames
Patent No: 2016201698706
high rigidity cross rails and mid-supporters to form ultra-high strength frameworks, thus make looms keep low vibrations while its high-speed running.
we set six air box in one body frame, and in case customers want to increase colors in fabric, they don't need to change the machine body, just adding feeders to the machine
Equipped with external loose warp mechanism, which make operation more simple and convenient,eccentric device with graduation marks can make loose warp amount adjusted freely among 0-6 mm to meet the requirements of more fabrics.
Electronic&pneumatic tuck-in device ,which can directly tuck weft ends into selvedges to achieve clean ones
Electronic&pneumatic tuck-in device ,which can directly tuck weft ends into selvedges to achieve clean ones.for electromagnetic air flow is adopted to realize weft end tuck-in, high speed weaving can be achieved.
