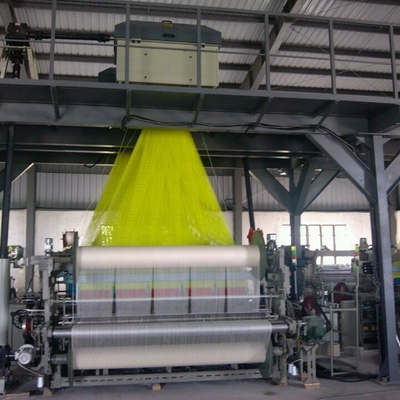

Eagle GA798 Flexible Fabrics Rapier Loom-- jacquard rapier loom
Features Humanized control and operation system
With materials of cotton fiber, natural fiber, artificial fiber and decorative yarn (e.g. cotton, polyester, silk, wool, acrylic, rayons, nylon and fancy yarns), GA798 Flexible Fabrics Rapier Loom is mainly used to weave them into light, medium and heavy fabrics of 20-800g/sqm, such as decoration cloth, window screen, colour cloths, flax cloth, cotton cloth, chemical fibre cloth, etc. In addition, we achieved varied weft density weaving, and weft density is controllable 5~46 picks/cm.
Stable operation and easy maintenance, low noise, beautiful exterior, humanized control and operation system, fast reactive permanent super motor with low power consumption, good comprehensive performance ensure the safety and stabilization of the system.
Main Specification
Model Number | Eagle GA798 Flexible Fabrics Rapier Loom |
Reed width (mm) | 150,180, 200, 230, 280, 330. |
Rotation speed | Designing speed 160~250rpm. |
Weft insertion | 160-180m/minby left and right flexible rapier band & head. |
Warp beam dia. | Standard 600mm. |
Cloth Roll Dia. | 300mm, can match with big rolling cloth mechanism. |
Weft feeder | FDP electronic weft accumulator. |
Driving control | Rated 0.8~1.3kw main motor power, 3-phase line, 380v, 50hz;Electro-magnetic clutch brake unit. |
Beat-up motion | Crankshaftweft insertion and beating-up. |
Lubrication | Oiling pump, automatic oil for dobby. |
Electric circuit | Standard modularization design, LED displays working condition. |
Weft selection | 4 or 6 colour driven by mechanical dobby weft selector. |
Yarn range | Spun yarns: 500tex (1.2Ne)~5tex (120Ne); Filament yarns: 10dte(9td )~1650dte(1500Td). |
Shedding motion | 8 pieces heddle frame, mechanical dobby with max. 20 shafts automatic open, can match with big jacquard. |
Let-off motion | Semi positive type mechanical let-off system controlled by feeder roller through linkages ensuring uniform warp beam tension. |
Take-up motion | Continuous gapless take-up, adjustable according to weft density of the cloth by pick wheels. |
Selvage formation | Mechanical selvage cutter, Leno selvedge. Temple: ring type copper cylinder with pin. |
Stop motion | Warp yarn: separate electric automatic warp stop motions;Weft yarn: high-sensitivity piezoelectricity detector automatic stop. Stop display: 4-colour multi-function indication lamps. |
Electronic control | Micro-computer functional automatic control system with memory cards, convenient and easy button operation, instant adjustment. |
Overall size | 450*250*260cm, 1.8~2.0 MTs. |
Based on the strong technology and production capacity, we have successfully developed GA series of rapier looms and shuttle looms, especially series of middle speed GA798 rapier looms for weaving all kinds of cloth fabrics, terry towel fabrics and many other special fabrics. We invented and developed CNC servomotor control cam looping for terry towel middle speed rapier loom in China. Our products includes GA798 series cloth fabrics rapier loom, GA798B series terry towel rapier loom, GA798M series tappet shedding rapier loom, GA798W series special fabrics rapier loom and GA615 series automatic shuttle changing power loom, etc..
1. One year warranty , the main spare parts one year warranty
2. engineer out board service
3. technique details teaching
4. spare parts supplier
5. any help in case you need connect us directly
1. are you the trading company or manufacture ?
we are the manufacture we have our own trade department
2. do you have the engineer who will do the outboard service
yes we have one group who are specialized in teaching and doing the injustion of the loom
