| Product Description |

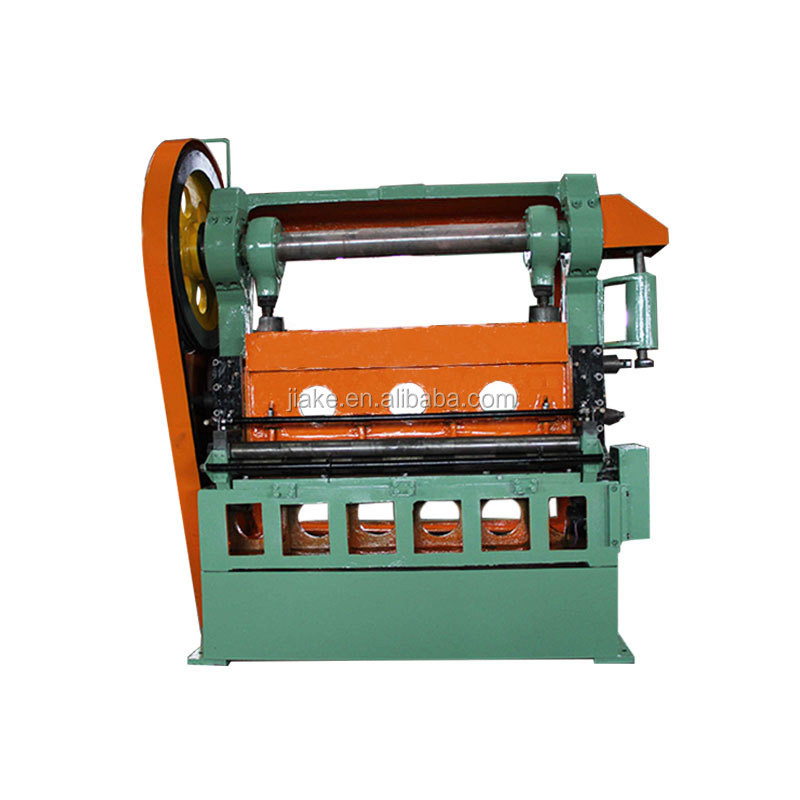

Expanded metal mesh machine can produce expanded metal mesh which is widely used in construction, hardware, window and door, machine protection etc.
Our machine can be produced max. 3200mm and thickness of metal sheet max. 8mm.The material for expanded metal sheet mesh making machine can be low carbon steel plate, stainless steel plate, aluminum plate, copper plate and so on.
| Model | DP25-16 | DP25-25 | DP25-40 | DP25-63 | DP25-100 | DP25-160 |
| Material Thickness(mm) | 0.1-1 | 0.1-1.5 | 0.1-2.5 | 0.5-3 | 0.5-5 | 0.5-8 |
| Material Max.width(mm) | 1000 | 1250 | 1500 | 2000 | 2000/2500 | 2000/2500/3200 |
|
Speed (times/min) |
220 | 200 | 110 | 75 | 60 | 50 |
| Feed Distance(mm) | 0-2.2 | 0-3 | 0-6 | 0-6 | 0-10 | 0-10 |
|
Mesh opening Size LWD(mm) |
≤25 | ≤30 | ≤80 | ≤150 | ≤180 | ≤200 |
| Motor(kw) | 5.5 | 5.5 | 11 | 11 | 18.5/22 | 30 |
| Weight(T) | 2.2 | 3 | 7 | 11 | 13/15 | 18/20/26 |
| Size(mm) | 1.1×1.7×2 | 1.5×2.1×2 | 1.8×3.2×2.1 | 3.4×3.4×2.35 | 3.4×3.6×2.65 | 3.5×3.7×2.65 |
If you have any questions,please feel free to Contact Us!
| Product Details |
| 1 | Steel metal cover for rotating wheels to ensure safety operation. |
| 2 | Alloy cutter mold can be made of Cr12#1 or YG-8 hardened tool steel, life up to one year. |
| 3 | Cast steel base and unit, shock-resistance and working smooth. |
| 4 | Central lubrication system to decrease machine wearing out and make maintenance easily. |
| 5 | Pneumatic clutch brake + step motor. Pneumatic cluth brake to stop the machine, more fast |
| 6 | Electric and pneumatic system PLC +Text screen control, easy to operate, one worker is ok |
| Auxiliary Equipment |
| Finished Products |
Click to Get Free Quote!
| Certifications |
| Company Informations |
| Our Client |
Q:Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 25 years. We have our own technology develop department and testing deparment.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.
